Main Components
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------23 stations roll forming-------table
https://www.youtube.com/watch?v=o5pXTdvRowM
https://www.youtube.com/watch?v=c2-5FPFiZ8U
https://www.youtube.com/watch?v=Uk4gVg0ylq4
----------------------------------------------------------------------------------------------------------------

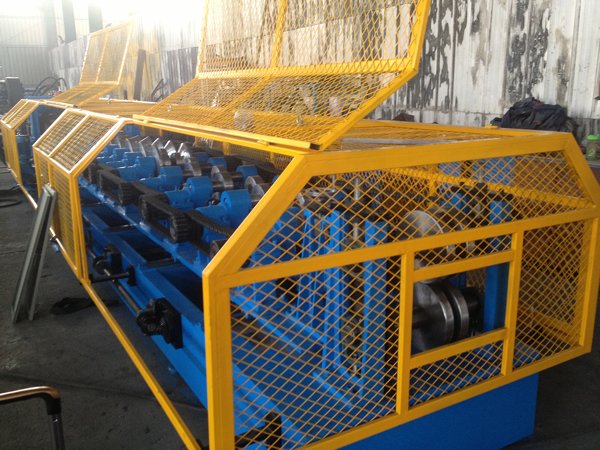

CZ purline machine in one.
15 minutes can change from c to z.
2 minutes to change the size automatically
-----------------------------------------------------------------------------------------------------------------
C purline machine.
-----------------------------------------------------------------------------------------------------------------

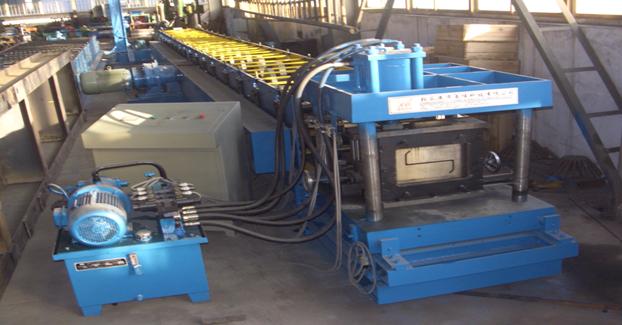

Z purline machine.

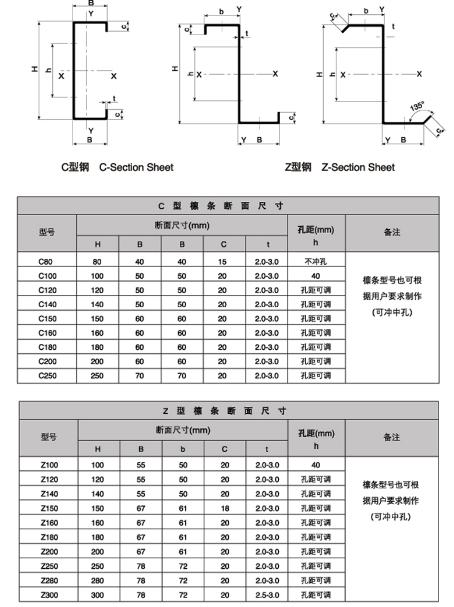

Profile:
Spec |
Material thickness |
Mini thickness |
1.0mm |
Max. thickness |
3.0mm |
Width |
200-600mm (we can design according to buyer`s requirement) |
Max. coil weight |
10 tons |
Inner Dia. of coil |
508mm |
roller material |
full hard CR12 steel chroma coated |
Total weight |
About 12t |
Working speed |
About 5-20m/min (adjustable) |
Control mode |
PLC and converter |
Total power |
About 11Kw (as per final designing) |
|
