Roll forming Machines |
|
|
 |
Corrugated roll forming machine
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------20 stations roll forming-------table
speed is 5-18m/min
roller is 45# steel
hard chroma coated
https://www.youtube.com/watch?v=BPGg46OVyqc |
 |
| |
|
 |

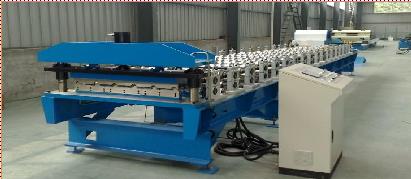

Trapezoid roll forming machine
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------18-28 stations roll forming-------table
speed is 5-18 m/min
roller is 45# steel
usually 7.5kw motor
https://www.youtube.com/watch?v=1uzl16lvWJg |
|
| |
 |

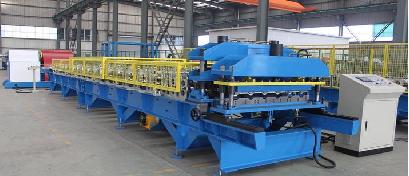

Tile roll forming machine
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------20 stations roll forming-------table
speed is 1-6 m/min
roller is 45# steel
customer drawings we can make also
https://www.youtube.com/watch?v=4ARBrJiPo-U |
|
 |
Barrel roll forming machine
speed is 15m/min
thickness is 0.15-0.4mm
height of wave can be adjustable
length can be 4m max
https://www.youtube.com/watch?v=RaJ8w3UBTXc
|
| |
|
| |
|
 |

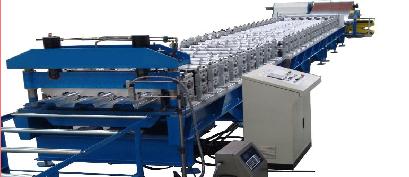

Deck roll forming machine
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------24-38 stations roll forming-------table
speed is 15 m/min
roller is 45# steel
power is 30kw usually
https://www.youtube.com/watch?v=oZA4IX0y9sI&feature=youtu.be |
|
| |
|
 |

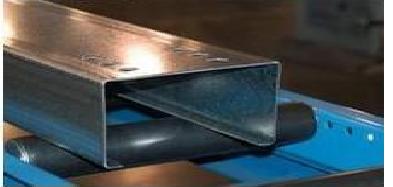

CZ roll forming machine
5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------24 stations roll forming-------table
speed is 20 m/min
roller is GCR15 steel
material thickness is 1.2-3.0mm
https://www.youtube.com/watch?v=16kZi-Ene1k
https://www.youtube.com/watch?v=o5pXTdvRowM
https://www.youtube.com/watch?v=c2-5FPFiZ8U
https://www.youtube.com/watch?v=Uk4gVg0ylq4 |
|
 |

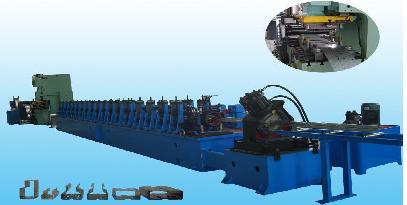

Rack roll forming machine
5ton or 10ton hydraulic decoiler-----servo feeder------leveller and guide-----continuous punching machine------24-38 stations roll forming-------table
speed is 15 m/min
roller is GCR15# steel
power is 25kw usually
https://www.youtube.com/watch?v=qXTs6QBtwLs |
|
 |

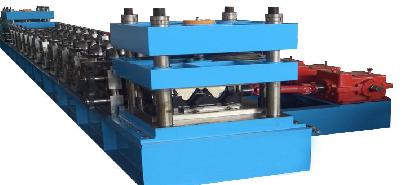

Highway guardrail roll forming machine
5ton or 10ton hydraulic decoiler----------24-38 stations roll forming---punching----cutting----table
speed is 15 m/min
roller is GCR15# steel
power is 37kw usually
https://www.youtube.com/watch?v=5rE2ifAJCRI |
|
 |

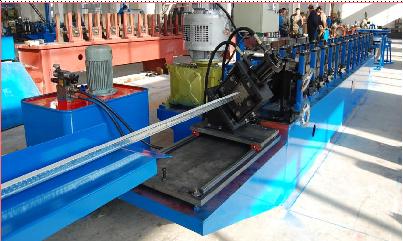

30m/min stud, track,drywall roll former
5ton decoiler----------10-18 stations roll forming----continuous cutting----table
speed is 30 m/min
roller is CR12 steel
power is 5.5kw usually
https://www.youtube.com/watch?v=Q3x2j5wmzJw
https://www.youtube.com/watch?v=16kZi-Ene1k |
|
 |
100m/min stud, track,drywall roll former
5ton decoiler----------10-18 stations roll forming----continuous cutting----table
speed is 100 m/min
roller is CR12 steel
can continuous punch too, speed is 50m/min include punching
https://www.youtube.com/watch?v=U1Au2LeRkFw
https://www.youtube.com/watch?v=O5hPzTSa9UI |
|
 |
semi automatic t bar system
5ton decoiler----------18 stations roll forming----continuous cutting----table
speed is 25 m/min
roller is CR12 steel
punch the finished product after cut seperately
https://www.youtube.com/watch?v=Y-MPPmddGTg
https://www.youtube.com/watch?v=fBy-HWsXK-o
https://www.youtube.com/watch?v=mFU6z-7zP1Y |
|
 |
Full automatic t bar system
5ton decoiler----------18 stations roll forming----continuous punching and cutting same time----table
speed is 25-30 m/min
roller is CR12 steel
punch the holes and cutting at same time
https://www.youtube.com/watch?v=Y-MPPmddGTg
https://www.youtube.com/watch?v=AUe5yOEJrkg
https://www.youtube.com/watch?v=cvwIF4GhptQ |
|
| |
|
