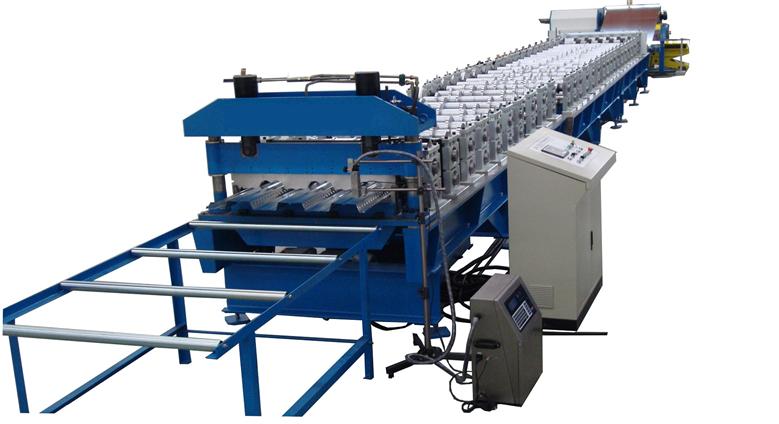

    Steel Deck roll forming Machine

    Main Components

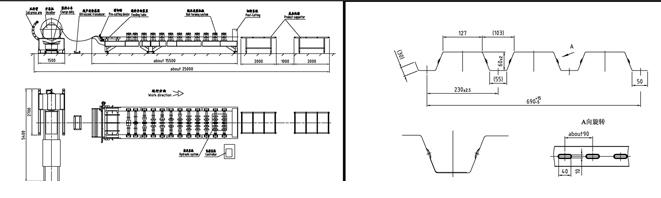

    5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------28 stations roll forming-------table

    https://www.youtube.com/watch?v=oZA4IX0y9sI&feature=youtu.be

    Spec
    Material thickness
    Mini thickness
    0.7mm
    Max. thickness
    1.2mm
    Width
    1250mm (we can design according to buyer`s requirement)
    Max. coil weight
    10 tons
    Inner Dia. of coil
    508mm
    roller material
    full hard 45# steel chroma coated
    Total weight
    About 12t
    Working speed
    About 5-20m/min (adjustable)
    Control mode
    PLC and converter
    Total power
    About 30Kw (as per final designing)





    Products
    Trapezoidal Sheet Roll Forming Machine
    Metal Tile Roof Roll Forming Machine
    Eps and rockwool Sandwich Panel machine
    C-Z Purlin Machine

    Latest technology

    Full automatic t grids,t bar machine
    Continuous punch all in one go, continuos cut. 3750mm and 3600mm
