    Eps Sandwich Panel Machine

    EPS Sandwich Panel Machine

    EPS sandwich panel machine could make the polystyrene core sandwich panel.

    This sandwich panel product line adopts PLC and touch screen controlling system.

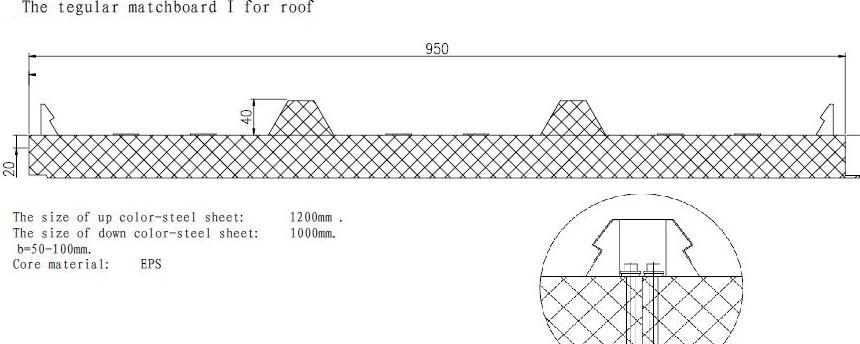

    It could make both roof and wall sandwich panel

    video:

    https://www.youtube.com/watch?v=xFYhxbJy-_Y



    Main Components

    3 pieces uncoilers

    2 layer roll for ming machines

    8m long laminating machine

    flying cutting device

    electric control system

    Stacker system

    EPS Sandwich Panel Spec
    Panel thickness
    Mini thickness
    50mm (wall panel)
    Max. thickness
    250mm(exclude corrugated sandwich panel)
    Steel Sheet Spec
    Thickness
    0.3-0.8mm color steel sheet
    Width
    1250mm (we can design according to buyer`s requirement)
    Max. coil weight
    5 tons
    Inner Dia. of coil
    508mm



    Whole Line Spec

    Whole line dimension
    about 35000mm กม 2500mm กม 3000mm
    Total weight
    About 20t
    Working speed
    About 3-5m/min (adjustable)
    The output
    1500m2-2000m2/8hour
    Control mode
    PLC and converter
    Total power
    About 28Kw (as per final designing)

    ---------------------------------------------------------------------------------------------



    ---------------------------------------------------------------------------------------------

    ---------------------------------------------------------------------------------------------

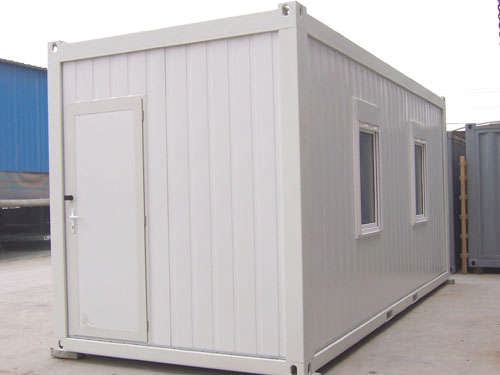

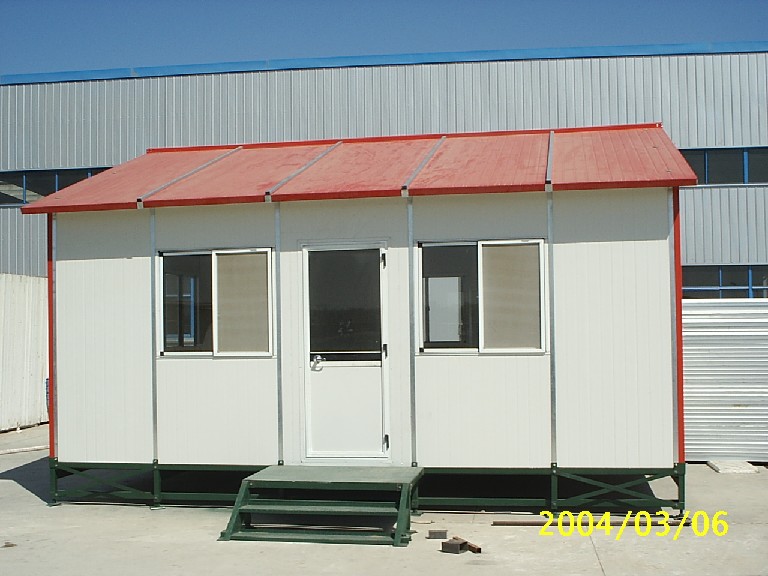

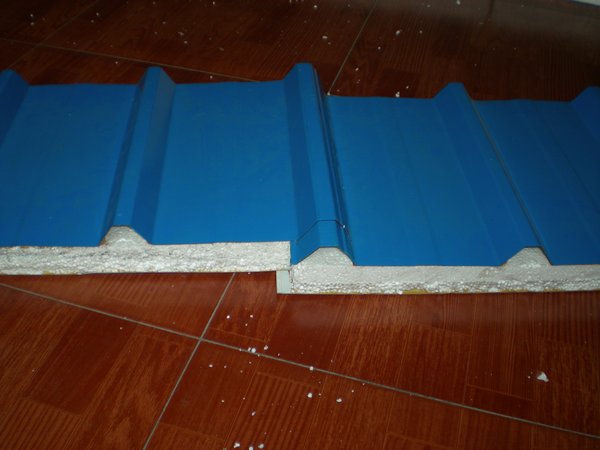

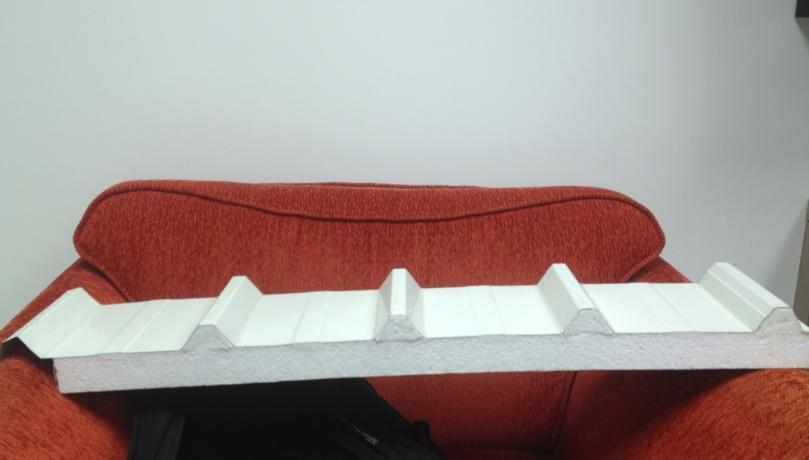

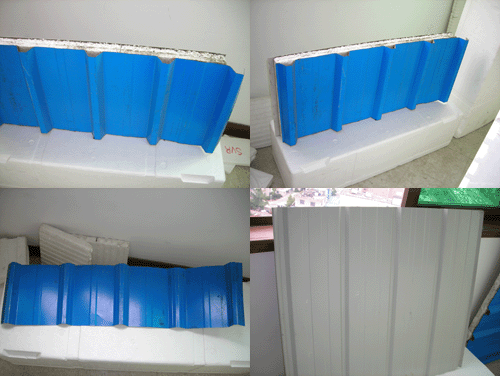

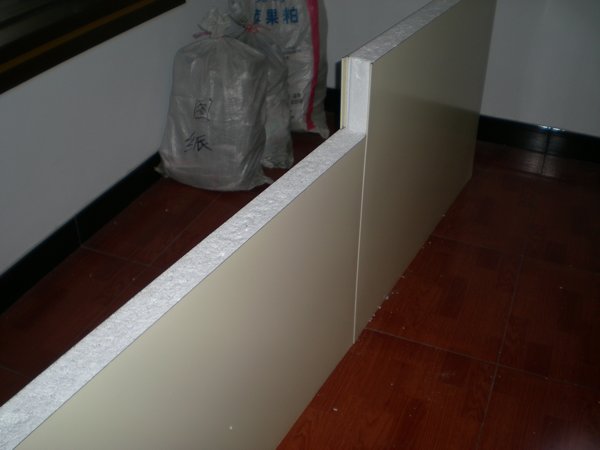

    More photos :
