Trapezoid sheet roll forming Machine

Main Components

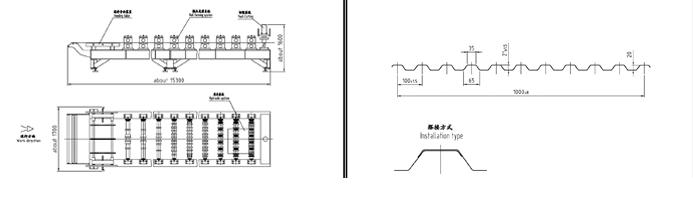

5ton or 10ton hydraulic decoiler-----feeder------guide-----entry------20 stations roll forming-------table

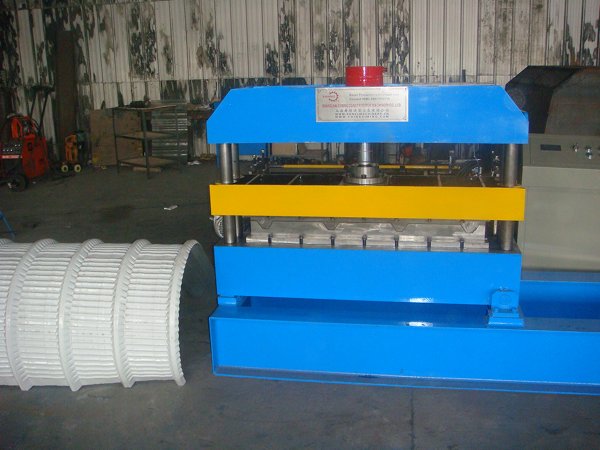

Hydraulic crimping machine:

Spec
Material thickness	Mini thickness	0.3mm
	Max. thickness	0.8mm
Width	1250mm (we can design according to buyer`s requirement)
Max. coil weight	10 tons
Inner Dia. of coil	508mm
roller material	full hard 45# steel chroma coated
Total weight	About 8t
Working speed	About 5-20m/min (adjustable)
Control mode	PLC and converter
Total power	About 7.5Kw (as per final designing)

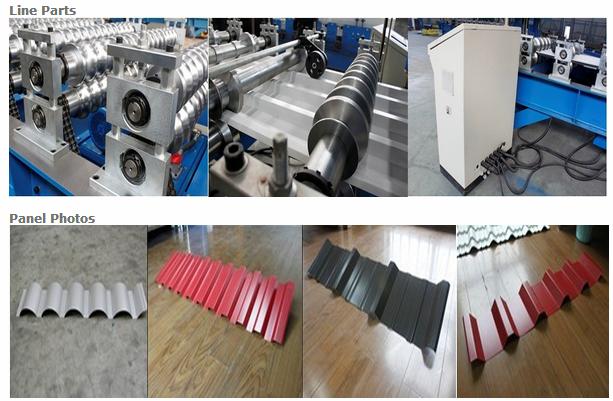

Products

Latest technology

Full automatic t grids,t bar machine
Continuous punch all in one go, continuos cut. 3750mm and 3600mm
