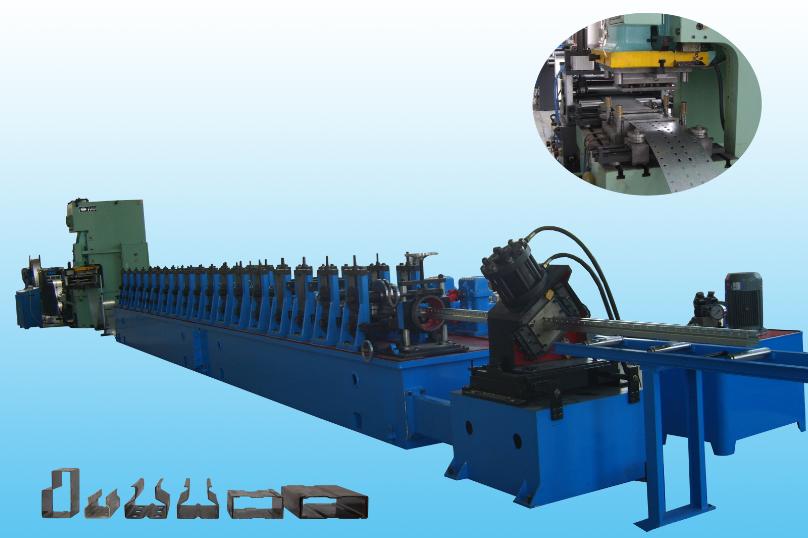

Rack system

Main Components

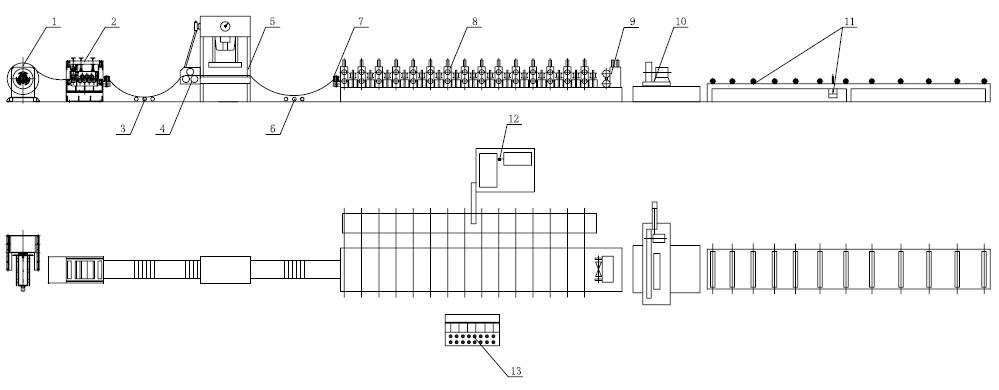

5ton or 10ton hydraulic decoiler-----servo feeder----continuous punch----guide-----entry------23 stations roll forming-------table

https://www.youtube.com/watch?v=qXTs6QBtwLs

-----------------------------------------------------------------------------------------------------------------

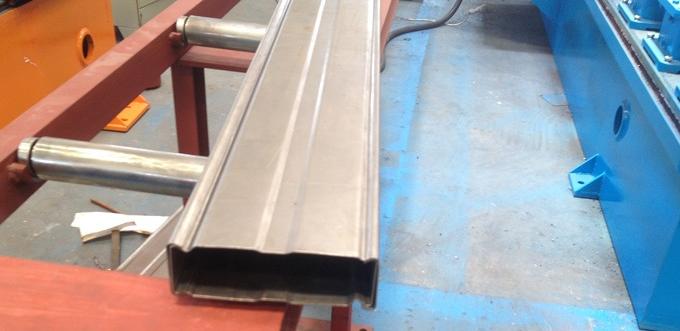

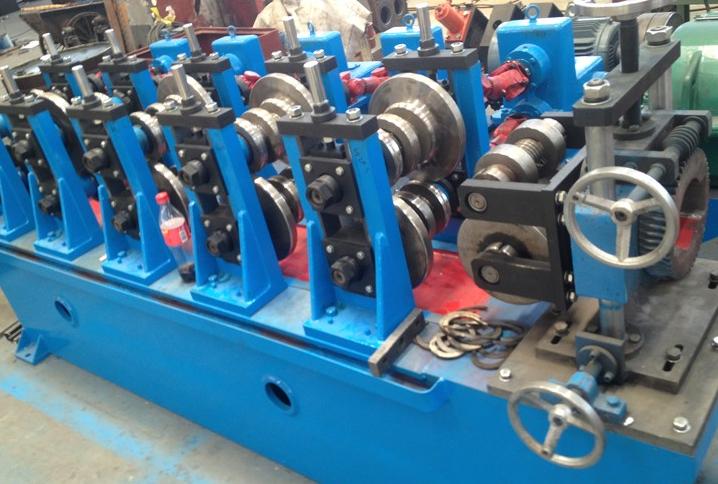

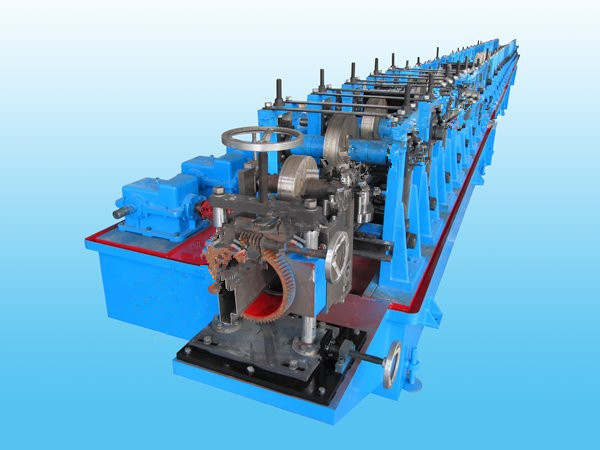

Beam Machine:

Lock machine to lock two beams, no need welding

Spec
Material thickness	Mini thickness	1.0mm
	Max. thickness	3.0mm
Width	200-600mm (we can design according to buyer`s requirement)
Max. coil weight	10 tons
Inner Dia. of coil	508mm
roller material	full hard CR12 steel chroma coated
Total weight	About 20t
Working speed	About 5-20m/min (adjustable)
Control mode	PLC and converter
Total power	About 15Kw (as per final designing)

Products

Trapezoidal Sheet Roll Forming Machine

Metal Tile Roof Roll Forming Machine

Eps and rockwool Sandwich Panel machine

C-Z Purlin Machine

Latest technology

100m/min speed continuous stud machine tollerance is 0.5mm, continuous cut, continuous punch.

Full automatic t grids,t bar machine
Continuous punch all in one go, continuos cut. 3750mm and 3600mm
